DPP320 -KD260C-DH120
Aluminum plastic pillow type automatic production line
  • description>
  • performance>
  • parameter>
  • Online inquiry>
product description

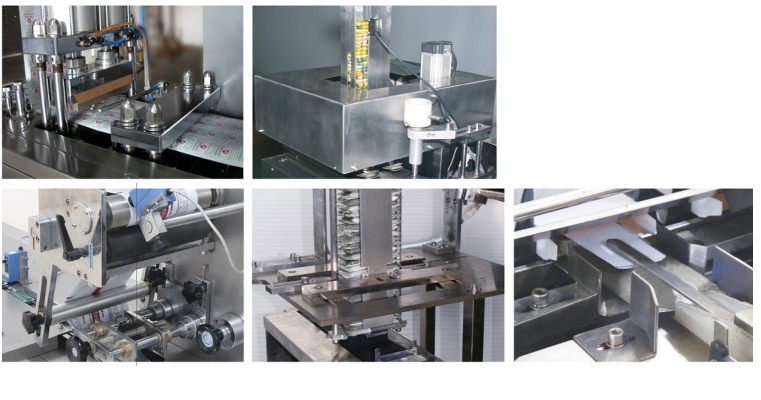

This set of equipment, domestic leading technology ratio matching DPP-320 high-speed aluminum-plastic packaging machine, linkage KD-260C servo pillow type automatic packaging machine, high-speed packaging can reach 60-150 bags / minute per minute, using DZH120 automatic Cartoning machine, combined with pillow type production, automatic cartoning speed can reach 60-100 boxes/min. per minute. It adopts domestic leading technology ratio, fast speed, stable performance, can be customized according to requirements, according to the workshop situation Design layout is the ideal packaging line for pharmaceutical, food, cosmetics and other manufacturing enterprises.


parameter
Production capacity

5-25 rush / minute

Adjustable stroke range (mm)

4-120

Packaging material specifications (mm)

medicinal PVC hard film

(0.2-0.5)×230-270

Glued PTP

(0.02-0.5)×230-270

Clean compressed air (pressure)

0.8-1.0MPa

Air consumption (air compressor)

≥0.25

Air pump volume flow (m3/min)

≥0.5

Electric energy consumption

AC380V 50Hz 6.5KW

Mold cooling water

circulating water consumption 60L/H

Dimensions (mm)

3400×650×1450

Net weight (Kg)

1500


The main technical parameters of pillow packaging


Bag size (mm)(L×H×W)

(65190)×(30-110)×(5-40)

Longitudinal and transverse seal strength (Newton/m㎡)

>15

Packing speed (bag / minute)

40-220

Packaging film width(mm)

80-260

Power specification

220V 5060Hz 2.4KW

Weight (Kg)

800

Dimensions (mm)

3780×640×1560


The main technical parameters of the box


Packing speed (mm)(L×H×W)

80-110 boxes / minute

Packaging material Packaging material carton size range (mm)(L×H×W)

(65-125)×(40-78)×(12-65)

Material (g/㎡)

250-350g/㎡

Specification size range (mm)(L×H×W)

(800-300)×(70-210)

Material (g / square meter)

55-65g/㎡

Clean compressed air (pressure)

0.6-0.8MPa

Air consumption (air compressor)

≥0.3

Electric energy consumption

AC380V 50Hz 1KW

Dimensions (mm)

3100×1380×1800

Net weight (Kg)

1700
